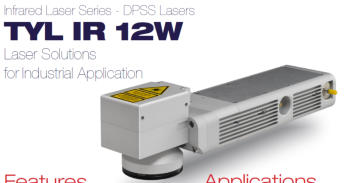

TYL IR 1064nm Q-switched DPSS laser sources Especially designed for the industrial market, Avarage power of 12W for covering most of industrial application (marking, engraving trimming…). Air cooled laser, rugged and compact. Working in a wide frequency range to offer a great operation flexibility, performing always high quality output beams. Thanks to it’s peculiar cavity design, TYL IR is also suitable for application that need hig energy at low frequency, as more than 1mJ is achieved. The original and proprietary design of the electronics allows remote diagnosis and full system PC control. TYL IR is available in OEM or Marker versions.

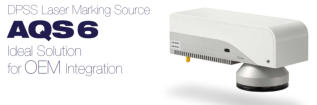

AQS6 Laser Marking Source A 6W active Q-switch laser marking source based on the DPSS technology, especially designed for integration in desktop machine for the ID field (Identity Cards & Passports), beyond standard Industrial Application. This is an innovative laser solution for the Industrial and ID field (marking on Polycarbonate or Laserable PVC, with strong control on the Gray Scale Generation). Key Characteristics of this product are the compactness and the possibility to manually adjust the focusing distance (within 1 cm. of range), permitting a very ease of integration in Desktop. OEM version available 6 and 10W Desktop Machine, Benchtop Testing Machine, Production Lines.

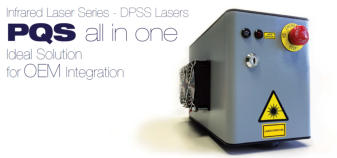

PQS Series Passive Q-switched laser sources with emission in the I.R. 1064nm. Gap Laser Systems is glad to announce the new PQS Laser based on a compact design that allows ease of installation/integration, making them a great attractiveness to the market for OEM Machine Builder. The high peak power of these sources are the right solution for industrial application, enabling surface marking on metals and plastics with quality and performance of absolute uniqueness. Three available average power, in the same footprint!

Scheda Tecnica AQS6

Scheda Tecnica AQS OEM

Scheda Tecnica TYL - IR

Scheda Tecnica PQS All in One

Scheda Tecnica GDL - OEM

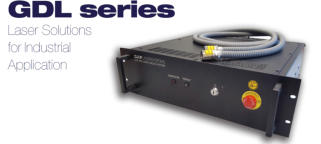

GDL Series GDL is a configurable laser system with one or two diode modules (CW or QCW) dedicated to applications of welding, soldering, cutting and heat activation. The diode modules can be configured both in wavelenght and in power, to cover the power r ange of 60W up t o 400W at wavelenghths of 1064, 915 and 976nm. External chiller only from 100W diodes modules, simple installation with 19 inches rack, fiber armored jaket (standard lenghs of 1, 3 and 5 meters), configurable focusing distance (in case of focusing head) and beam collimator diameter (in case of simple collimator), makes unique the Gdl product in it is ayout, fo demanding application in automotive, electronics and general industrial applications.

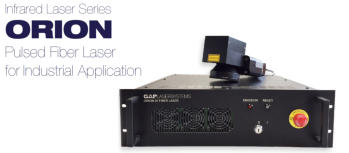

ORION Series Orion fiber laser is the new range of laser that allows to face and solve any problem where the marking process speeding up, the depth of marking or the high visual contrast are key factors of the applicazion. Ideal for working in heavy industrial environments, ORION fiber laser are available in power ratings of 20W, 30W, 50W and 100W, all air-cooled and without any external chiler. upon request, the lasers can be equipped with embedded PC for managing “on board” the marking software and with Profibus system, more and more required in the industrial field for the transmission of variable data.

Scheda Tecnica ORION
